Type
ER 70S-6 welding wire for welding un and -low alloyed steels upto 420 MPa yield strength.
classification
AWS
A 5.18: ER 70S-6
EN ISO
14341-A: G 42 4 M21 3Si1
14341-A: G 42 3 C1 3Si1
W.Nr.
1.5125
Applications

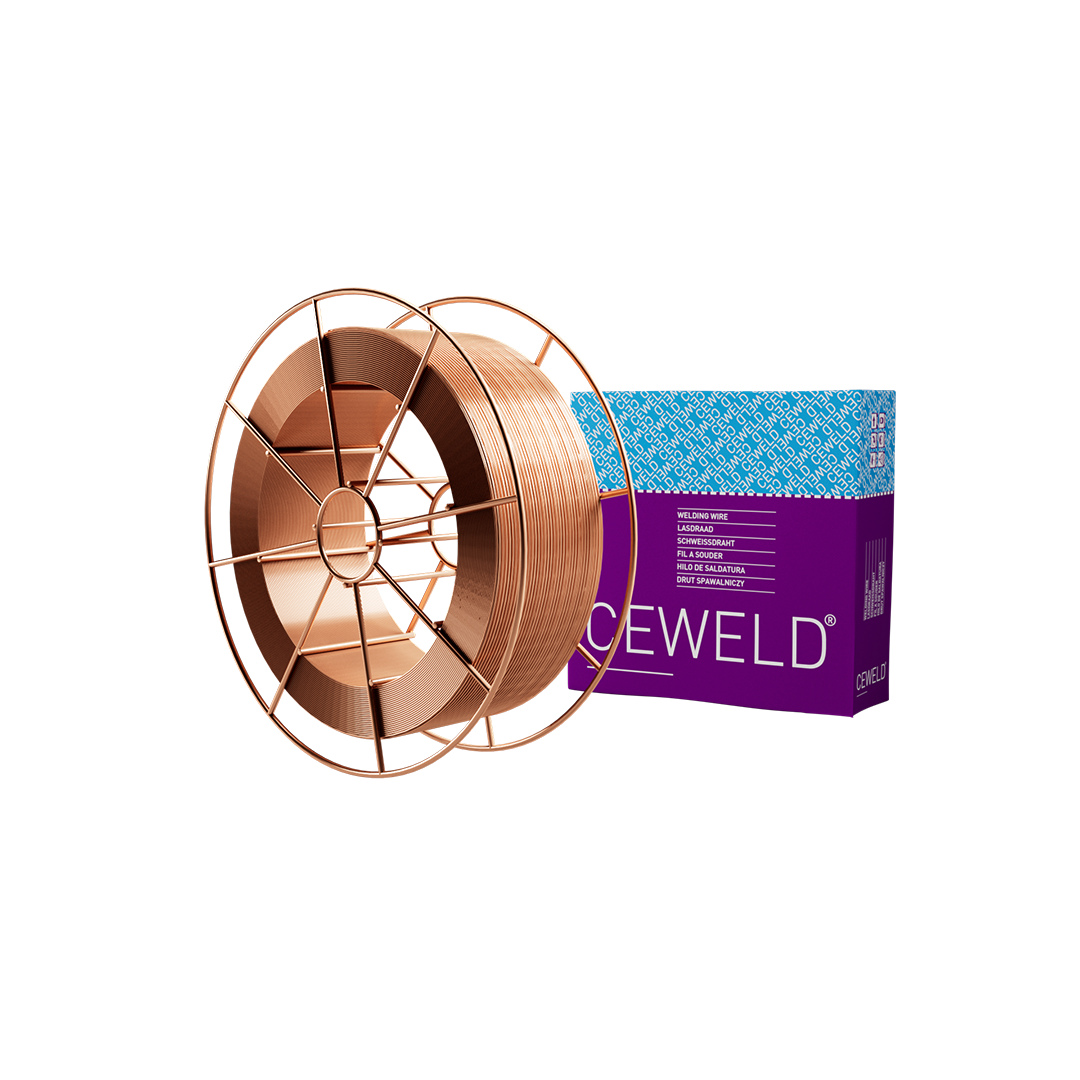

CEWELD® SG 2.0 is a GMAW wire for joining and surfacing unalloyed and low-alloy structural steels.

Typical in Shipbuilding, piping, bridges, repair, construction, car-plate welding etc...

Type
ER 70S-6 welding wire for welding un and -low alloyed steels upto 420 MPa yield strength.
Applications

CEWELD® SG 2.0 is a GMAW wire for joining and surfacing unalloyed and low-alloy structural steels.

Typical in Shipbuilding, piping, bridges, repair, construction, car-plate welding etc...

Properties

 CEWELD SG 2.0 is extremely easy to weld with, providing a very stable and soft arc. It is copper-coated and has excellent welding properties. Spatter formation is low. It is of a high quality with a controlled cast and helix, making it excellent for semi- and fully automatic welding applications.

Classification
AWS
A 5.18: ER 70S-6
EN ISO
14341-A: G 42 4 M21 3Si1
14341-A: G 42 3 C1 3Si1
F-nr
6
FM
1
W.Nr.
1.5125
Suitable for

Rp< 420 MPa (60ksi) ISO 15608: 1.1( ReH < 275 MPa ), 1.2 (275 < ReH < 360 MPa), 1.3 (ReH > 360 MPa < 420 MPa)

1.0035, 1.0038, 1.0039, 1.0044, 1.0112, 1.0116, 1.0130, 1.0145, 1.0253, 1.0254, 1.0255, 1.0258, 1.0259, 1.0319, 1.0345, 1.0345, 1.0345, 1.0348, 1.0352, 1.0418, 1.0420, 1.0425, 1.0425, 1.0425,1.0451, 1.0452, 1.0453, 1.0457, 1.0459, 1.0460, 1.0461, 1.0486, 1.0490, 1.0491, 1.0619, 1.1100, 1.0409, 1.0421, 1.0426, 1.0429, 1.0430, 1.0436, 1.0473, 1.0481, 1.0482, 1.0484, 1.0505, 1.0545, 1.0546, 1.0562, 1.0566, 1.0570, 1.0578, 1.0581, 1.0582, 1.8902, 1.8912, 1.8932

10Ni14, 12Ni14, 13MnNi6-3, 15NiMn6,

S235JR-S355JR, S235JO-S355JO, P195TR1-P265TR1, P195GH-P265GH, L245NB-L360NB, L245MB-L360MB, L415NB, L415MB, WStE 380, WStE 420, S420NL

A, B, D, E, A 32-E 36

ASTM A 105, A 106, Gr. A, B; A 283 Gr. A, C; A 285 Gr. A, B, C; A 501, Gr. B; A 573, Gr. 58, 65, 70; A 633, Gr. A, C; A 711 Gr. 1013;

API 5 L Gr. B, X42, X52, X60

Domex 315-420MC,MC Plus, ML

Approvals
CE, TÜV: 20180.01
Welding positions
PA
PB
PC
PD
PE
PF
PG
Redrying
Not required
Gas acc. EN ISO 14175
M21, C1
Analysis
C Si Mn P S Cr Ni Mo Ti V Cu Al Zr Ti+Zr
0.07 0.85 1.45 0.015 0.015
Mechanical Properties
Heat
Treatment		 RP0,2
(MPa)		 Rm
(MPa)		 A5
(%)		 Impact Energy (J) ISO-V Hardness
-40°C
As Welded 450 550 30 80 HRc
