Type

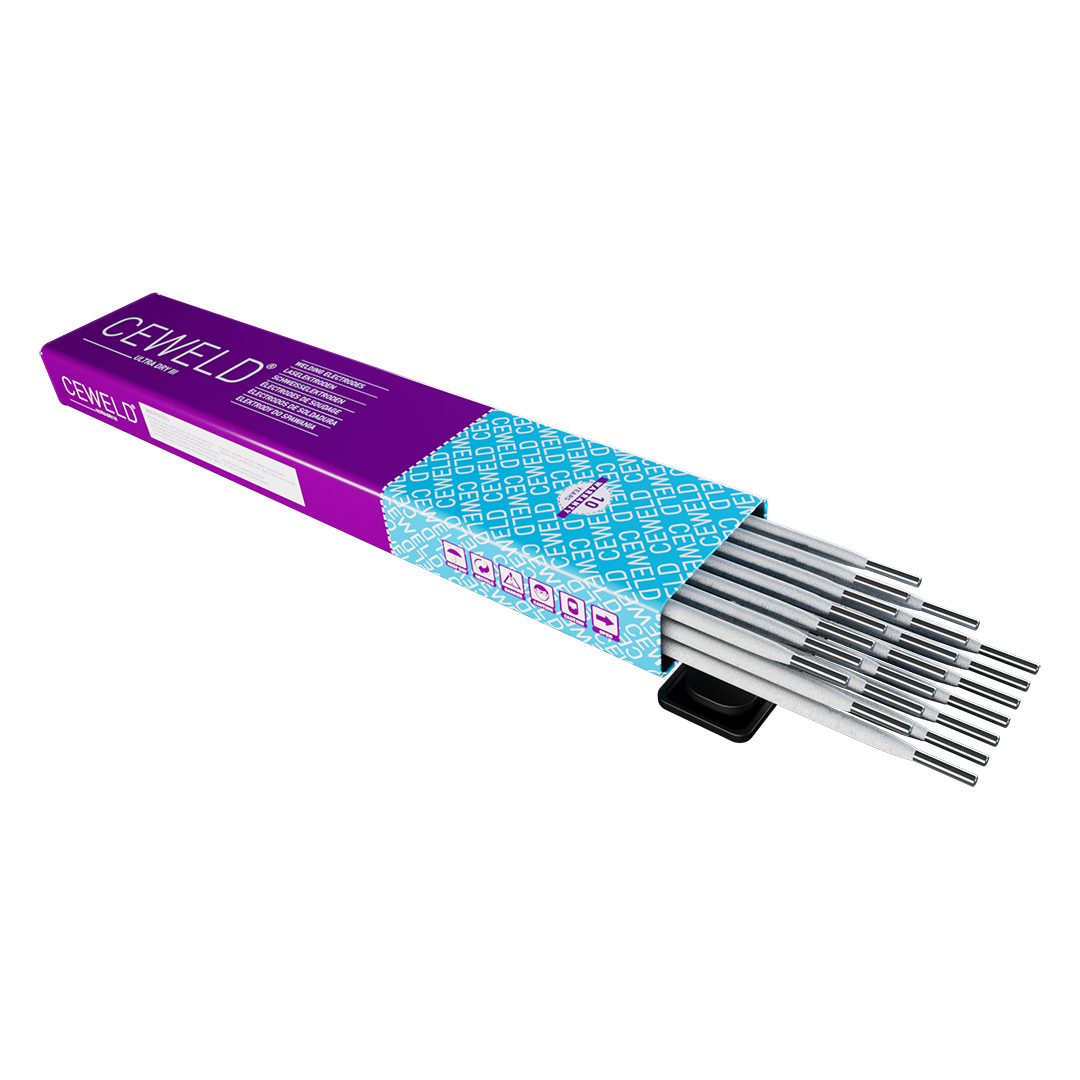

Rutile E 6013 welding electrode for stick SMAW welding of mild steels.(E6013, E 38 0)
classification
AWS
A 5.1: E 6013
EN ISO
2560-A: E 38 0 R 12
Applications

CEWELD® E 6013 S is a medium thick coated electrode for all kinds of steel structures and is particularly suited for welding jobs at poorly accessible points and badly prepared seams.

Shipbuilding, general construction, vessels, wagons, repair welding, pipe welding

Type
Rutile E 6013 welding electrode for stick SMAW welding of mild steels.(E6013, E 38 0)
Applications

CEWELD® E 6013 S is a medium thick coated electrode for all kinds of steel structures and is particularly suited for welding jobs at poorly accessible points and badly prepared seams.

Shipbuilding, general construction, vessels, wagons, repair welding, pipe welding

Properties

CEWELD® E 6013 S can be welded in all positions, the PG position only to a limited extent as it depends on the diameter. It shows good gap bridging and easy slag removal with a very stable arc.

In most cases, it is insensitive to scale, primer and zinc.



Classification
AWS
A 5.1: E 6013
EN ISO
2560-A: E 38 0 R 12
F-nr
2
FM
1
Suitable for

Re ≤ 380 MPa (55 ksi)  ISO 15608: 1.1( ReH < 275 MPa ) 1.2 (275 < ReH < 360 MPa)

1.0035, 1.0038, 1.0039, 1.0044, 1.0112, 1.0116, 1.0130, 1.0145, 1.0253, 1.0254, 1.0255, 1.0258, 1.0259, 1.0319, 1.0345, 1.0345, 1.0345, 1.0348, 1.0352, 1.0418, 1.0420, 1.0425, 1.0425, 1.0425, 1.0427, 1.0432, 1.0446, 1.0451, 1.0452, 1.0453, 1.0457, 1.0459, 1.0460, 1.0460, 1.0461, 1.0486, 1.0490, 1.0491, 1.0505, 1.0545, 1.0546, 1.0562, 1.0566, 1.0570, 1.0578, 1.0581, 1.0582, 1.1138, 1.5419, 1.8948

C 22.8 S1, S185, S235JRG2, S235JR S235JRH, S275JR, P235S, S235J2G3,   P265S, S275J2, P235TR1, P235TR2, P265TR1, P265TR2, P235GH, P235GH, P235GH, P195GH, P245GH, L245ME, GE200, P265GH, P265GH, P265GH, C 22.3, C 21 , GE240, P215NL, P255QL, P265NL, L245NE, C 22.8, P250GH, P275N, S275N, S275NL, GP240GH, P275SL, 21 Mn 6, StE 320.7, St 52.0, P280GH, (X42ME) L290ME, P305GH, P355GH, P295GH, L290NE, S355N, S355NL, P355N, P355NL1, S355J2G3, G21Mn5, G20Mo5, X52QE,

ASTM: A 27 u. A36 Gr. all; A214; A 242 Gr.1-5; A266 Gr. 1, 2, 4; A283 Gr. A, B, C, D; A285 Gr. A, B, C; A299 Gr. A, B; A328; A366; A515 Gr. 60, 65, 70; A516 Gr. 55; A570 Gr. 30, 33, 36, 40, 45; A 572 Gr. 42, 50; A606 Gr. Alle; A607 Gr. 45; A656 Gr. 50, 60; A668 Gr. A, B; A907 Gr. 30, 33, 36, 40; A841; A851 Gr. 1, 2; A935 Gr.45; A936 Gr. 50;

API 5 L Gr. B, X42-X52



Approvals
CE
Welding positions
PA
PB
PC
PD
PE
PF
Redrying
140°C / 1 hr
Current type
AC / DC+ / DC-
Analysis
C Si Mn P S Cr Ni Mo V Cu Al Nb
0.08 0.4 0.5 0.02 0.02
Mechanical Properties
Heat
Treatment		 RP0,2
(MPa)		 Rm
(MPa)		 A5
(%)		 Impact Energy (J) ISO-V Hardness
0°C
As Welded 410 530 25 65 HRc
